4-20MA RS485 Water Pressure Transmitter Water Level Sensor Submersible

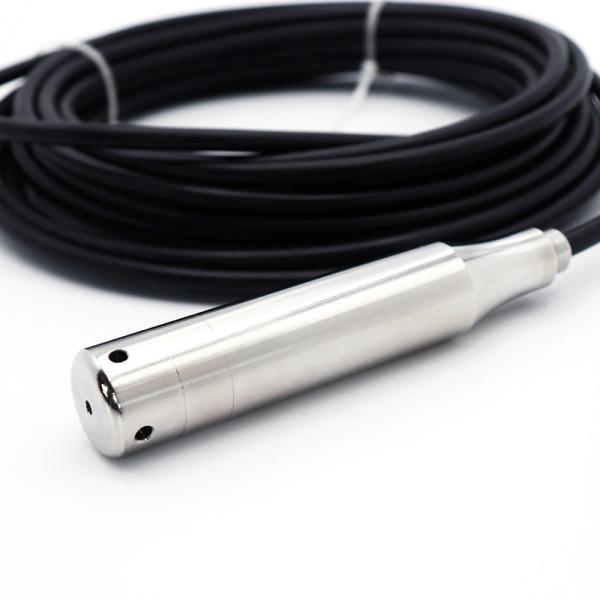

WNK8010 is a submersible water level sensor transducer suitable for liquid level or pressure and depth measurement. Each submersible pressure transducer features a removable nose cone at the sensor which protects the diaphragm from damage.Ventilation tube in the cable automatically compensates for changes in atmospheric pressure above the tank.
Quick information:
- High accuracy up to 0.2%FS;
- Wide application range 0-0.5~200m H2O;
- Output 4~20mA, 0~10mA, 0~5V, 1~5V and others;
- High overload 1.5 times;
- Stability 0.25%FS/Year;
- Corrosive resistance cable of PTFE;
- Protection class IP68;
- OEM &ODM
Detailed Technical Info:
| Submersible Level Sensor |
| Adopting diffusion silicon oil-filled sensor |
| Output | 4~20mA, 0-10mA, 0-5V, 1-5V and others |
| Level range | 0-0.5~200mH2O |
| Overload | 150% of sensor range |
| Measuring medium | Liquid |
| Accuracy | ±0.2%FS, ±0.5%FS |
| Stability | 0.25%FS/ year |
| Housing material | Stainless steel |
| Cable material | Polyvinyl Fluoride, PTFE |
| Power Supply | 24VDC |
| Ambient temperature | -20~85 Deg C |
| Process temperature | -20~85 Deg C |
| Compensation temperature | -20~85 Deg C |
| Protection class | IP68 |
Competitive Advantages:
1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
FAQ
Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer since 2004.
Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome
Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.
Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
