4-20ma 0-5v RS485 Output Liquid Oil Water Tank Level Switch
Description:
The level switch SLS takes the high integrated ARM industrial-grade MCU as the core. The SLS ensures fast-speed and precise level measurement and switch movement by carefully adjustment and combining high-precision AD switch and high stabile pressure sensor. The setup using the three big back-lighted buttons and the display on machine make it very easy for on-site parameters setting.
Features:
- Liquid and oil media level measurement
- PNP switching, voltage and current outputs
- Support MODBUS communication
- Switching points settable
- Switching can be set normally open / normally closed
- Supporting Switching delay
- Analog output span settable
- High light switch indicating
- OLED self-luminous display
- Display turnable 180°
- Housing with electrical connection against process connection rotatable 330°
- Media density settable
Technical Data:
| Product name | SLS Electronic Smart Level Switch |
| Measuring range | 01mH2O to100mH2O |
| Accuracy | ≤0.5%FS |
| Supply power | 12-30V DC |
| Temp. Error | ±0.02% URL/ºC (Zero/ Full Span) |
| Long-term Stability | ≤±0.3%FS/Year |
| Analog output accuracy | ≤±0.2%FS |
| Measuring media | Water, mineral-based hydraulic fluid and Synthetic oil |
| Wetted material | Stainless steel, Nitrile Butadiene Rubber and PTFE |
| Output configurations | 2×PNP + 0v~5VDC/10VDC + MODBUS |
| 2×PNP + 0mA/4mA~20mADC + MODBUS |
| Switch current | 1.0A(Max.) |
| Switching type | Normally open / closed (settable) |
| Reponse time | < 10ms |
| Switching motion mode | Delay or windows mode |
| Analog signal output and max ohmic load RL | Current output 0/4...20mA, 20...4mA RL≤0.5k |
| Voltage output 0...5/10v, 5/10...0v RL>10k |
| Screen display | OLED |
| Menu language | Chinese and English |
| Displaying units | kPa, mm, cm, m |
| Working temperature | -30-80ºC |
| Media temperature | 0ºC~60ºC |
| Storage temperature | -40ºC~80ºC |
| Electromagnetism compatible | GB/T 17626.2/3/4-2006 |
| shock resistance | ≤10g/10Hz...500Hz(IEC 60068-2-6-2007) |
| vibration resistance | ≤50g/11ms(IEC 60068-2-27-2008) |
| Protection class | IP65| IP68 (Switch body| level detector) |

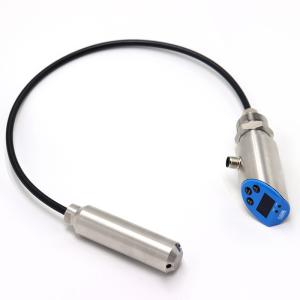

Product Show
Ordering sheet:
.Company Information
FAQ
Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer since 2004.
Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome
Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.
Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
