4-20ma 0.5-4.5v I2C Ceramic Capacitance Compact Pressure Sensor For Liquid Gas Steam

Brand Name : WNK

Model Number : WNK80MA

Certification : CE

Place of Origin : China

MOQ : 1 Ppiece

Price : Negotiation

Payment Terms : T/T, Paypal, West union

Supply Ability : 1000

Delivery Time : 3-5 days

Packaging Details : Standard Packing or as per your requirement

Output : 24VDC/12VDC/5VDC/3.3V

Pressure range : 0~6MPa

Measured media : Liquid, gas and steam

Electrical connection : Packard, M12, DIN43650, Cable

Housing material : Alunimum/Brass/SST 304

Key words : Pressure sensor

IP rate : IP65

Prorocess conection : G1/2, G1/4, M2x1.5NPT1/4, customization

Contact Now

4-20ma 0.5-4.5v I2C Output Ceramic Capacitance Pressure Sensor For Liquid Gas Steam

Product Description

WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance.

With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.

Specification

Applicable media	Liquid, gas and steam
Pressure range00	0-6Mpa
Cell	Ceramic capacitive pressure sensor
Pressure measurment	Gauge Pressure and sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Power supply	24VDC/12VDC/5VDC/3.3V
Accuracy(linearity,Hysteresis and Repeatability)	0.5%FS-1%FS
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
Electrical connection	Parkard, Cable outlet, M12, mini DIN43650
Mechanical connection	G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
Housing material	304 stainless steel(316SS for inner core)
Protection	IP65

Product display:

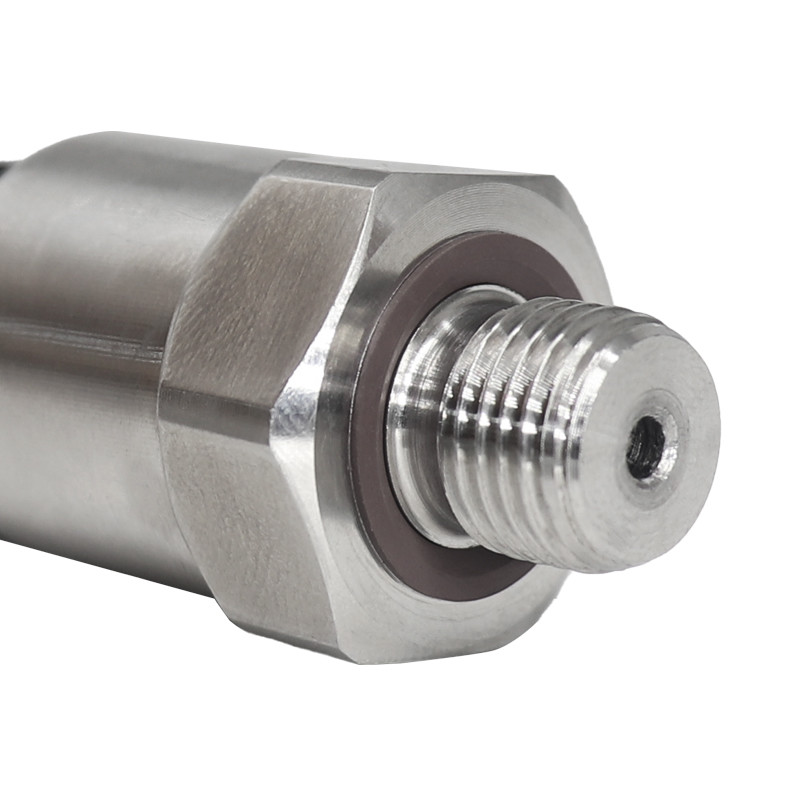

4-20ma 0.5-4.5v I2C Ceramic Capacitance Compact Pressure Sensor For Liquid Gas Steam

Company introduction:

4-20ma 0.5-4.5v I2C Ceramic Capacitance Compact Pressure Sensor For Liquid Gas Steam

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
