Industrial Measure Smart Pressure Transmitter Explosion Proof with 4-20ma Output

Brand Name : WNK

Model Number : WNK55

Certification : CE, SGS

Place of Origin : Hefei, China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 200 set/day

Delivery Time : 3~5 working days

Packaging Details : standard export carton packing

Input : -100kpa ... 60Mpa

Signal Output : 4-20 ma, 0.5-4.5V DC

Long term stabiliy : 0.075%

Ingress Protection : IP67

Wetted Parts : 304SS, 316SS

Power Supply : 24V DC

Communication : Hart Profibus FF

Contact Now

Explosion Proof Industrial Measure Smart Pressure Transmitter with 4-20ma Output

Product Features

1. High accuracy: up to 0.075%FS;
2. Output: 4~20mA, Hart, Profibus-Pa
3. Excellent long-term stability: long-term drift ≤±0.15%URL for 5 years
4. Range ratio: 100: 1;
5. Module design: C
8. High Temperature Resistance: Highest temperature up to 280℃ with diaphragm sealing;
9. High Pressure Ability: Max Pressure up to 700bar.

Applications
1. Gauge & absolute pressure measurement in gases, steam or liquids in all areas of of engineering process and measurement.
2. Level, volume or mass measurement in liquids.
3. Working with detecting element, measure the flow of gases, steam and liquid flow.( volume and mass flow)
4. High pressure up to 700bar.

Specifications

Applicable media	liquid, gas and steam
Pressure range	-0.1Kpa - High Pressure up to 700 Bar
Accuracy	0.075%, higher on request
Stability	±0.15% of URL for 5 years
Temperature drift	±0.03% of URL/10ºC
Output signals	4~20mA, Hart, Profibus-PA for option, FF per request
Display	LCD, or pointer optional
Housing material	Aluminum14
Mechanical connection	M20×1.5;G1/2;1/2NPT
Protection class	IP66/67
Ex-proof	Exia II CT4, other option per request
Power Supply	10.5-55V DC 10.5-30V DC
Ambient temperature	-40 to 85ºC,-40 to 80ºCfor LCD header
Storage temperature	-45 to 85ºC,-40 to 80ºC for LCD header ;
Measurement	with display: 9512652 (mm)
Measurement	without display: 9511552 (mm)
Net Weight	4kg (without bracket or process connection)

Product Tags:

smart type pressure transmitter

smart pressure sensor

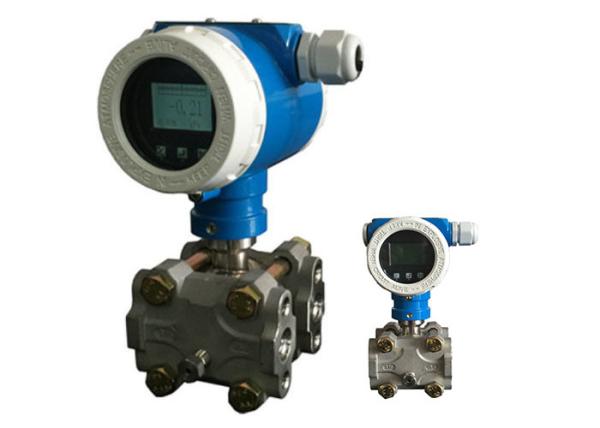

Industrial Measure Smart Pressure Transmitter Explosion Proof with 4-20ma Output Images
